Output-Spray-Machine

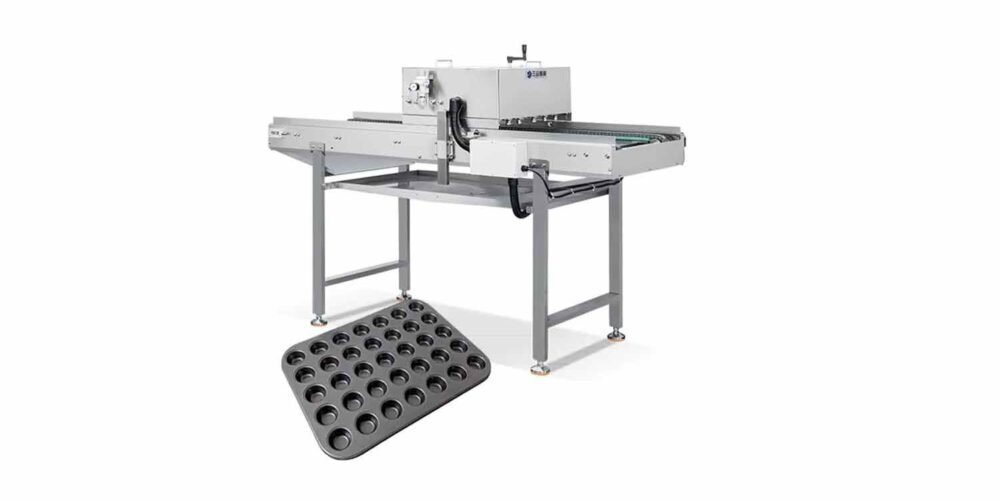

CupCake Output Spray Machine

It applies to spraying oil to the bottom and sides of the toast box, flat-bake plates, cake molds, etc; It is equipped with high precision spray nozzles and stable constant voltage system, precise fluid, gas flow mixing ratio control functions, contributing to high quality micro-particle spray effects and precision spraying, not generating splashing and fog.

  • 6 spray guns are configured.
  • Two storage tanks, one for use and one for backup, alternate use.
  • Custom Precision Stainless Steel Pressure Storage Tanks.

Product Specification

Features

  • With over-pressure automatic pressure relief protection device.
  • The size of oil particles can be precisely adjusted, by precision spraying.
  • Spray nozzle height can be adjusted freely.
  • High flexibility of the spray nozzle.
  • With residual liquid collection device, easy to clean

Material

  • 304 stainless steel
  • 6061 aluminum
  • Food hygiene grade POM

Belt Width

  • 620mm

Dimension (L x W x H)

  • 1500x910x1100mm

Weight

  • 120KG

Voltage

  • Single-phase 220V\50Hz

Power

  • 0.15KW

Capacity

  • 6~12 trays/min
